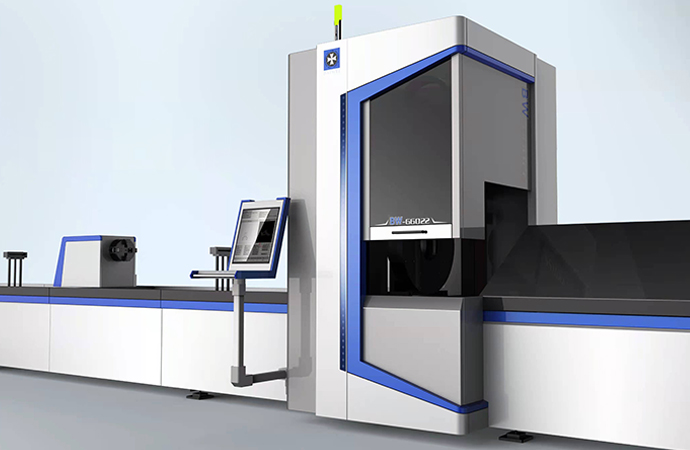

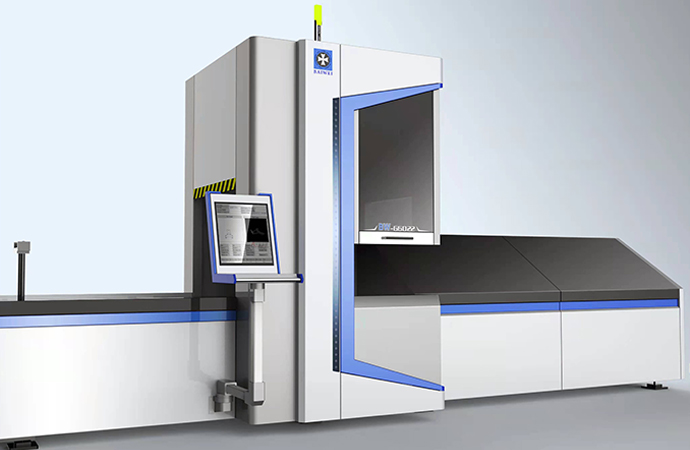

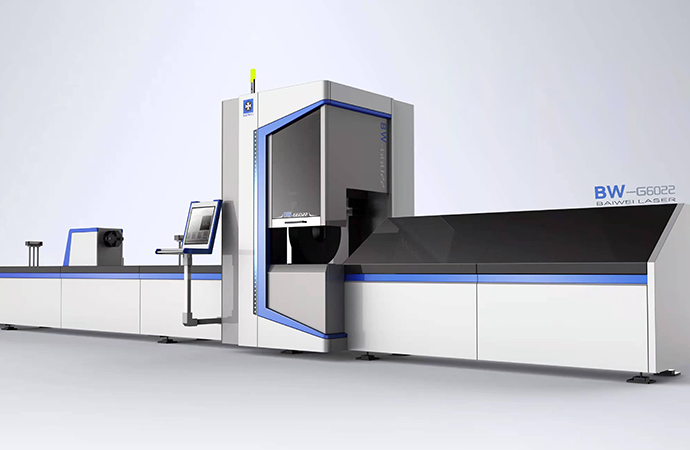

Professional tube laser cutting machine

BWQG SERIES Professional Laser Tube Cutting Machine 3kw-20kw

Baiwei laser pipe cutting machine is a product developed for the profile and pipe cutting market. It adopts a professional numerical control system to realize the control of pipe material feeding, follow-up support, and automatic chuck adjustment. At the same time, it can be equipped with advanced IPG fiber laser.
Output Power: 3kw/6kw/12kw/15kw/20kw (Optional)
Model: BWQG6016-6000*160mm (Optional)
Tube Diameter: 120mm/160mm/240mm/280mm/350mm/450mm/500mm (Optional)
Share
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Professional tube laser cutting machine
Product Description
Details
Baiwei laser pipe cutting machine is a product developed for the profile and pipe cutting market. It adopts a professional numerical control system to realize the control of pipe material feeding, follow-up support, and automatic chuck adjustment. At the same time, it can be equipped with advanced IPG fiber laser. The transmission components are all imported from Europe, and the key components are independently developed. This machine can meet the cutting, opening and contour cutting of round pipes, square pipes, rectangular pipes, oval pipes and other profiles. It can be used in construction, food, decoration, advertising, sporting goods and other industries. Automatic and high-efficiency special pipe cutting equipment.
Details
Suitable material
Tube laser cutting machine is a laser cutting machine specially designed for cutting metal tubes. Can cut round tube, square tube, rectangular tube, oval tube, long tube (orbit circle), angle steel, channel steel, stainless steel tube, flat tube, U-shaped tube. Equipped with a special cutting operating system, the operation is simple, high precision, professional and stable, suitable for professional profile cutting, widely used in sports equipment, oil pipelines, chemical equipment and other industries.
Suitable material
Samples Exhibition
It can cut high-reflective metal materials such as copper pipes, aluminum pipes, and galvanized pipes, and most metal materials can be cut.
It can cut arc, bevel, bevel and fish mouth. fish mouth cutting.
It can be cut at 30°, 45° or 90° according to the actual needs of customers, and two 45° angles can be seamlessly assembled into a 90° angle.
It can cut round, square, rectangular, oval, triangular, pentagonal and flat tubes.
Samples Exhibition
Pneumatic Chuck Clamping
Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision, suitable for various shapesof tube.
Pneumatic Chuck Clamping
Aviation Aluminum Beam
2023 newly designed aluminum beam has lighter weight, higher strength and better efficiency of metal laser cutting machine.
Aviation Aluminum Beam
Parameter
Model BWQG6016-6000*160 professional tube laser cutting machine
Motor and Drive Panasonic/Fuji
Laser head Baiwei customized laser cutting head&Swiss Raytools auto focus laser cutting head&Precitec auto focus laser cutting head (Opitional)
Gear, rack APEX/YYC
Reducer Shimpo&Neugart
Tailing length 15mm-30mm Shortest tailing waste in this industry,we can also do 0 tailing without any waste
Cutting diameter ≤499mm
Cutting length 6000mm/9000mm/12000mm (Optional)

Specification
Tube Size (mmxmm) Tube Size (mmxmm) Round Tube: O.D.20 ~ 300
Square tube: 20 x 20 ~ 150 x 150
Rectangular tube: 20 x 20 and the outer diameter of the circumscribed circle is 300
oval tube
Triangular tube and various special-shaped tubes
Angle iron and channel steel
High carbon steel, stainless steel, seamless pipe, galvanized pipe, copper aluminum pipe
Processing tube type round tube, rectangular tube, oval tube, etc.
Pipe length (mm) 6000
Pipe weight (kg/m) 20
Fast moving speed (m/min) 90
Machine positioning accuracy (mm) 0.05
Repeat positioning accuracy (mm) 0.03
CNC system Siemens or Baiwei dedicated
Display 24"LCD
Display 24"LCD
Automatic feeding system optional
Laser Type Fiber
Laser power (W) 500~3000
Equipment power demand 380VAC±10%/50Hz
Equipment weight (≈t) 14
Host size (length x width x height/mm) 15000x4500x3000

Remarks: The company reserves the right to change the above parameters. If you have special requirements for the machine, we can customize it, welcome to inquire.

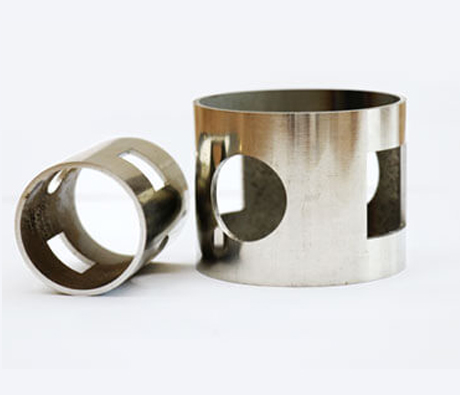

Cutting samples
Main structural components
Laser Source
Laser Source
Laser Cutting Head
Laser Cutting Head
High Precision Gear and Rack
High Precision Gear and Rack
Japan Shimpo Reduce
Japan Shimpo Reduce
Hanli Water Chiller
Hanli Water Chiller
Japan Panasonic Servo Motor
Japan Panasonic Servo Motor
