Components of a laser cutting machine

Release Time:2022-07-04

Read:

In recent decades, with the rapid development of laser cutting technology, laser cutting machines have become more and more widely used in the manufacturing industry. Compared with traditional metal cutting equipment, laser cutting machine is efficient, intelligent and high precision, which greatly improves the efficiency of metal cutting. However, the so-called interlacing is like a mountain, and many people who have not been in contact with the laser equipment industry are still very unfamiliar with the composition of the laser cutting machine. In today's article, the editor will introduce the laser cutting machine to everyone.

A laser cutting machine usually consists of the following parts:
1. Laser: that is, a laser generator, electro-optical conversion, and equipment that emits laser energy;

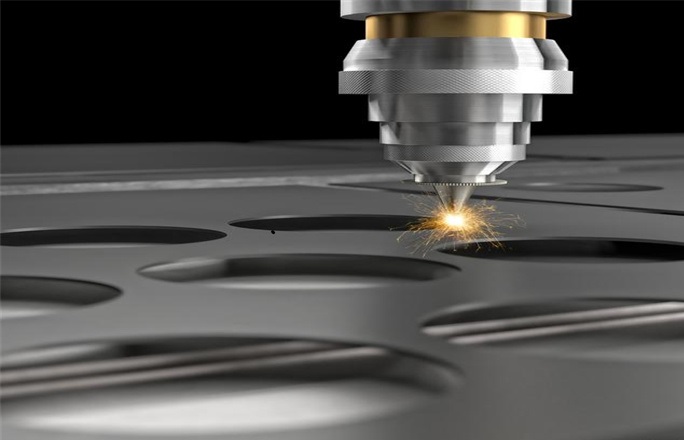

2. Cutting head: including nozzle, focus lens and focus tracking system software and other parts;
3. Light transmission parts: mapping mirrors to guide the laser to the necessary orientation;
4. Numerical control system: control the machine tool to realize the movement of X, Y and Z axes, and also control the output power of the laser;
5. Refrigeration system: a circulating cooling device used to cool the laser and cutting head, to take away unnecessary heat to maintain the normal operation of the equipment and ensure stable beam transmission quality;
6. Voltage stabilizer: stabilize the power supply voltage of the laser cutting equipment, ensure the smooth operation of the equipment, and protect it;
7. Air compressor: When air cutting, provide air source device for the equipment to ensure the required pressure and flow of the equipment;
8. Air storage tank: including the material gas tank and auxiliary gas tank in the laser cutting machine, to fill the chemical gas fluctuated by the laser and provide auxiliary gas for the cutting head;
9. Filtering device: used to provide clean dry gas to the laser generator and the light channel, so as to maintain the normal operation of the channel and reflector;
10. Dust removal equipment: extract the dust and smoke caused by production and processing, and filter it.

It is not difficult to see that the composition of the laser cutting machine is relatively complex, and it is a comprehensive advanced equipment integrating light, machine and electricity. When purchasing a laser cutting machine, it is necessary to buy a suitable laser cutting machine according to factors such as the scope of production and manufacturing, raw materials for cutting production and processing, and the thickness of the raw materials, and do not blindly choose.

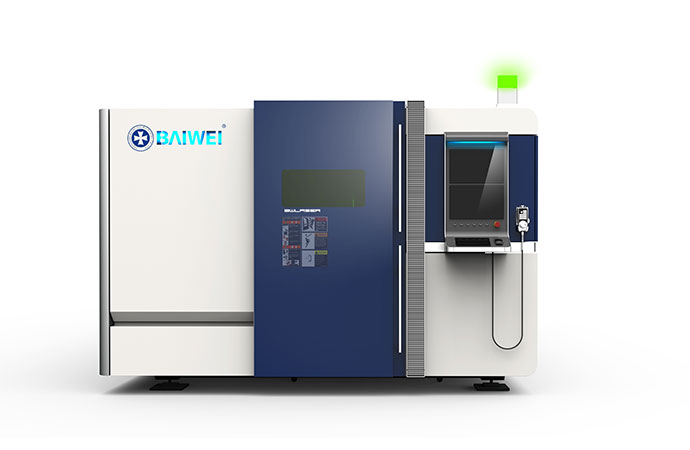

Baiwei insists on independent innovation, masters core technologies such as light source, numerical control system, functional components, etc., and has strong vertical integration capabilities. Baiwei specializes in R&D and production of high-end laser equipment such as CNC fiber laser cutting machine, 3D laser cutting machine, special laser tube cutting machine, tube-board integrated laser cutting machine, etc., and can customize intelligent laser equipment products according to customer needs to meet customer requirements in many aspects.
